Name: Precision Evaporation Power Source up to 300W & DC5V for DIY PVD - GSL-DZ300-LD
SKU: 1906768

Product Details ＋

GSL-DZ300 is a precision evaporation power source up to 5VDC and 300W with 0.1% accuracy for DIV of PVD coater via resistance heating. The power source is digital control by either manual or automation. You can make your own PVD coater by connecting the power source with tungsten crucible

SPECIFICATIONS:

Input Power	Input voltage: 208 - 240 VAC 50/60 Hz, single-phase, 300W Power cable included without the plug 110VAC version is available upon request
Output Power	Voltage: 0 - 5VDC Current: 0 - 300A Power: 300W Max.
Control Panel	4/3" touch screen control panel Constant Voltage or constant current mode is selectable Control accuracy: /- 0.2% Response time: < 5 ms Soft start: 1 - 10 S Timer: 65535 S Protection: Built-in over-voltage and overcurrent protection. RS485 port: Built-in for remote operation

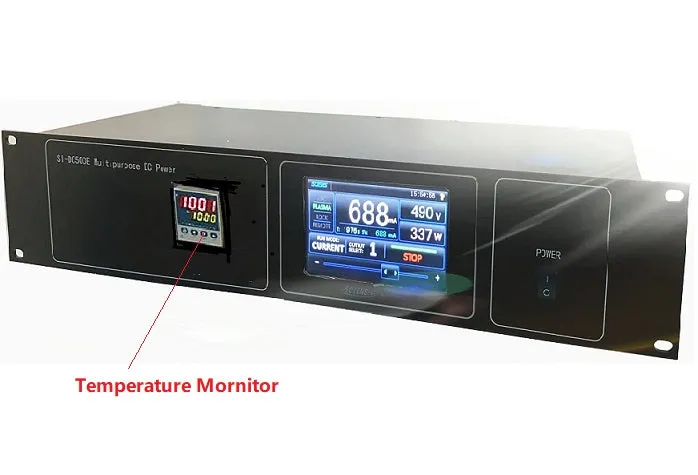

Optional	Temperature Monitor and thermal couple may built-in upon request Tungsten basket and boat are available upon request (optional)
Compliance	CE Certified NRTL or CSA certification is available upon request at the extra cost.

Precision Evaporation Power Source up to 300W & DC5V for DIY PVD - GSL-DZ300-LD
